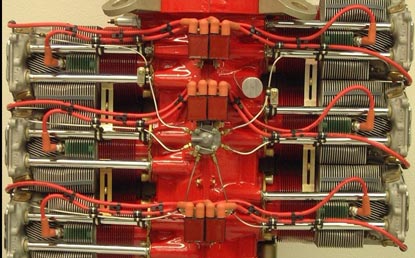

Ignition coil
positioning and high tension lead routing for a
Dual Plasma CDI.
Pictured here on an IO-540 by Performance Engines.
One

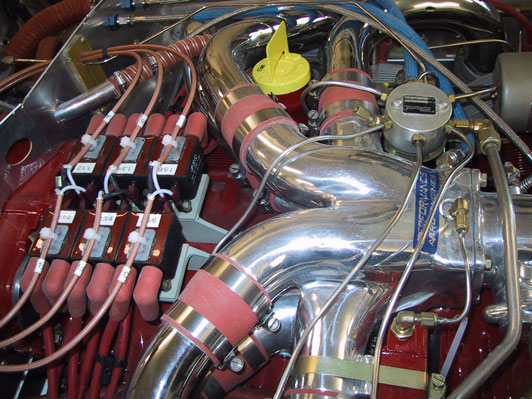

location to mount the ignition coils on a
Continental TIO-550 with Dual Plasma CDI.

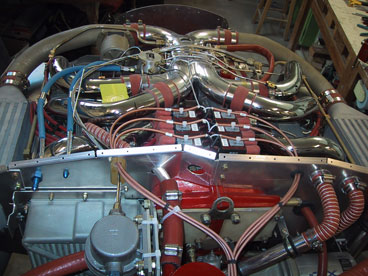

Ignition
coil mount and wire routing for a dual PLASMA CD
installation on a Continental TIO-550.
(close-up of the above photo)

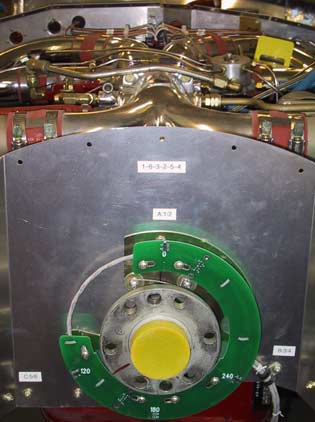

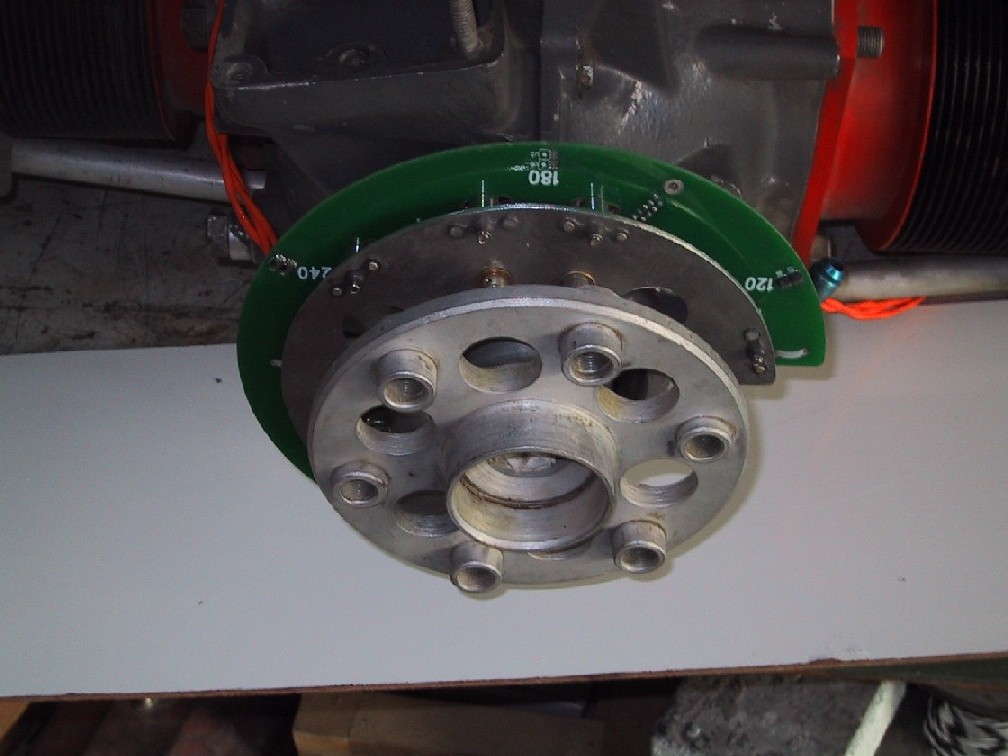

Direct
Crank Sensor mounting bracket and circuit board
installation on a Continental TIO-550.

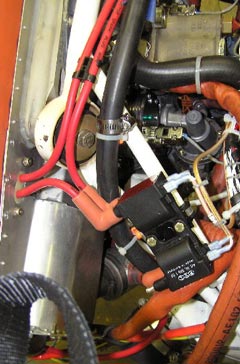

Another
great place to install the ignition coils is on
the motor mount.
Scott Krueger's installation is pictured above.

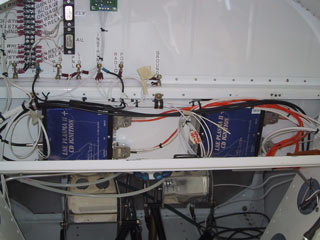

Typical PLASMA CDI installation in an RV-8,
courtesy of Ray Findly.
|
™
